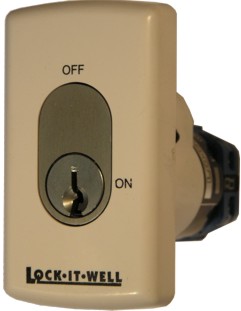

OVAL 4 - (Captive Key) Off / On
1 N/O, 1 N/C changeover contacts
Locking Features
Incorporates standard Oval lock cylinders.
Cylinder easily removed and re-assembled without risk of the switch falling apart.
May be master keyed into all common lock brands and high security lock systems.
Captive key in "ON" position
Electrical isolated Cylinder for added safety
Electrical Characteristics
| AC current | AC21 10 amp 440 volt |
| AC23 3 KW | |
| AC 3 2.2 KW | |
| DC current | Inductive 24v 6 amp |
| DC1 24v 10 amp |
Electronic Data: High contact reliability by multi contacts with 1u standard gold contacts and option 35u gold plating
Circuits: Available with multiple contacts and hundreds of contact arrangements. Finger proof terminals. Terminals take two 1.5mm wires.
Durability: Switch tested for 1/2 million operations.
|
Standard Mounting Options (Oval Series supplyed with these mounitng types) | |
|
Wall Mount |
Wall Switch Plate |
|
(10mm x 40mm x 70mm) |
(24mm x 70mm x 110mm) |
|
|
|
|
Optional Extra Mounting Options | |
|
PZ25: Stainless Steel Plate |
KEJB1- Surface Mount Box |
|
(2mm x 115mm x 70mm) |
(100mm x 100mm x 100mm) |
|
|
|
