OVAL 1 - (Lazy Cam) Off/On
1 N/O, 1 N/C changeover contacts
Locking Features
Incorporates standard Oval lock cylinders.
Cylinder easily removed and re-assembled without risk of the switch falling apart.
May be master keyed into all common lock brands and high security lock systems.
Electrical isolated cylinder for added safety
Electrical Characteristics
| AC current | AC21 10 amp 440 volt |
| AC23 3 KW | |
| AC 3 2.2 KW | |
| DC current |
Inductive 24v 6 amp |
| DC1 24v 10 amp |
Electronic Data: High contact reliability by multi contacts with 1u standard gold contacts and option 35u gold plating
Circuits: Available with multiple contacts and hundreds of contact arrangements. Finger proof terminals. Terminals take two 1.5mm wires.
Durability: Switch tested for 1/2 million operations.

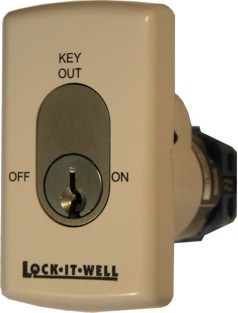

Standard Mounting Options (Oval Series supplyed with these mounitng types) Wall Mount Wall Switch Plate (10mm x 40mm x 70mm) (24mm x 70mm x 110mm)

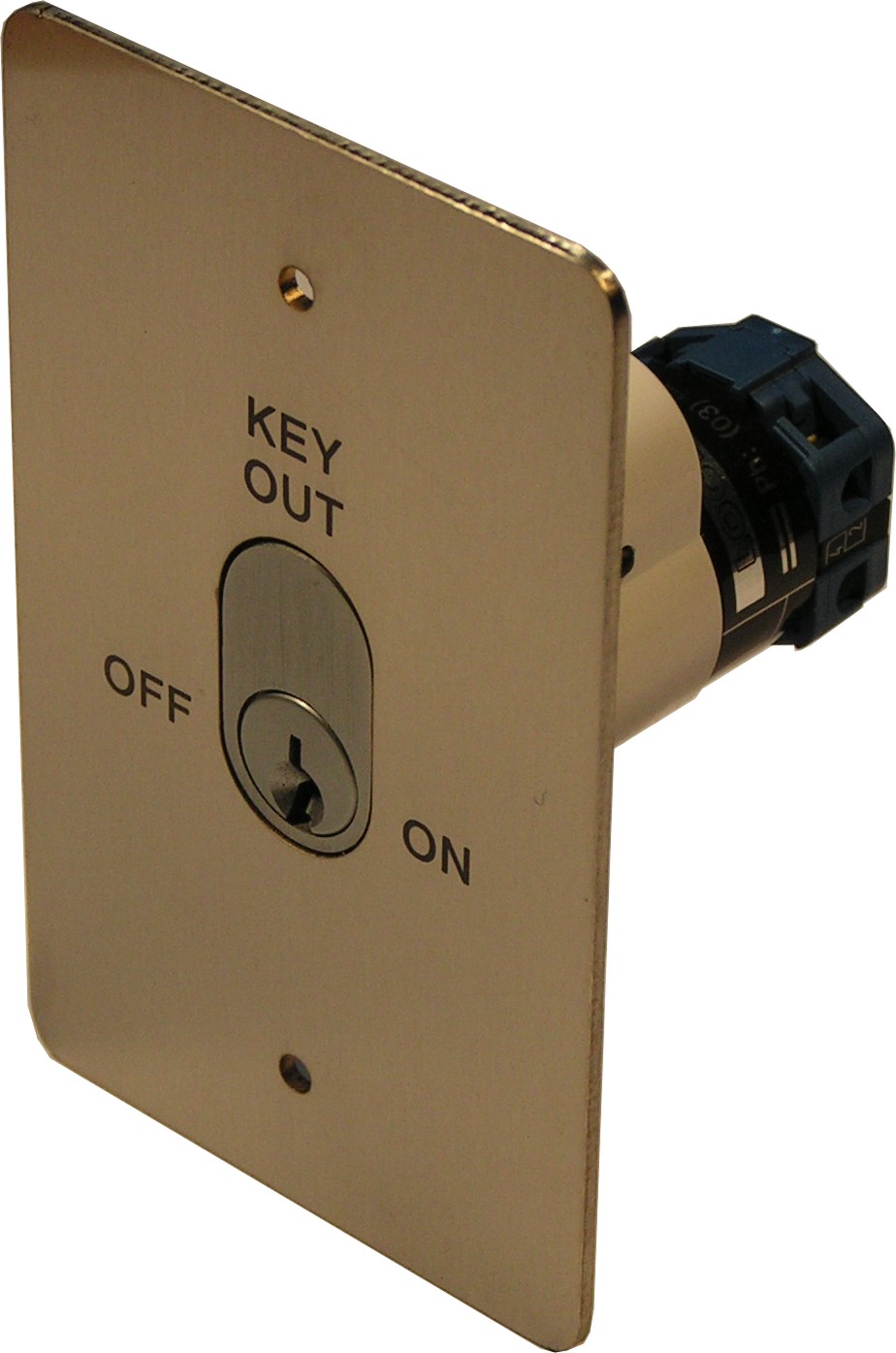

Optional Extra Mounting Options PZ25: Stainless Steel Plate KEJB1- Surface Mount Box (2mm x 115mm x 70mm) (100mm x 100mm x 100mm)
