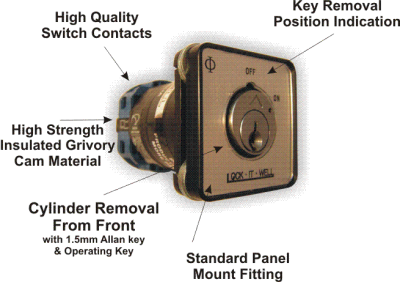

R Series Security Key Switch

Removal Cylinder Series Key Switches

The "R" series uses a unique removable cylinder enabling convenient master keying and key recombination of rental properties. The key may be removed or held captive in any switched position. This series is available in a variety of mounting types including panel, lift, bezel and wall plate. It is also available in a wide range of switching configurations.

Features

The key may be captive or removed in any switched position. The cylinder cab be removed from the lock face by the use of an allen key Spring return from either side is available. 60 Degree and 90 Degree switching is available.

Avaiable in three mounting options.

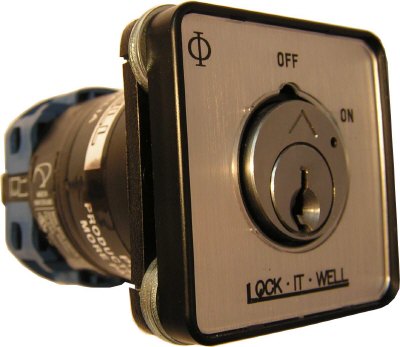

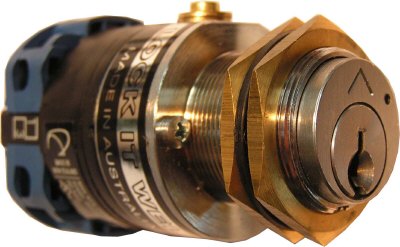

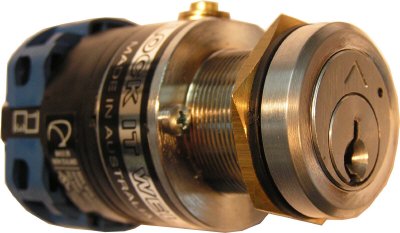

Panel Mount	Lift Mount	Bezel Mount

Removal Series Downloads

Download R Series Brochure (limited Circuits)

Download Electrical Diagram "Common Circuits"

Download Lift circuits "Spring Return to Centre"

Download Lift circuits 3 position-Spring Return "OFF ON Start"

Download Lift circuits 2 position "90 Degrees"

Download Lift circuits 3 position "90 Degrees"

Optional Wall Mount

Wall Mount Plate

Clipsal 2000 Series Wall cutout to suit standard "R" Series Panel mount switches. Designed for replacement of light switches or new install onto walls.

LIW Order Code “EZY WALL”
75mm X 115mm
Order with Panel Mounting Only

Optional Surface Box Mount - KEJB1

KEJB1 Surface Mount Security Key Switch

KEJB1 Surface mount box. To fit the R or K Series key switches.

LIW Order Code “KEJB1”
100mm X 100mm X 100mm
Order with Panel Mounting Only

Key Switch is not included with product.

Optional Water Resistant Mount - KEWP1

IP Rated Clipsal 56 Key Switch Enclosure

KEWP1 Surface mount box. To fit the "R" Series key switches.

LIW Order Code “KEWP1”
100mm X 100mm X 100mm
Order with Panel Mounting Only

Key Switch is not included with product.

Optional Water Resistant Mount - PZ70

PZ70 IP66 RL Enclosure

IP66 Rated enclousre for Standard/EZY series Panel mount Key Switches (Please specify switch type, switch not included)Can be custom Laser engraved to suit swith positions.

LIW Order Code “PZ70”
190mm(H) X 100mm (W) X 100mm (L)
Order with Panel Mounting Only

Key Switch is not included with product.

PZ11R Stainless Steel Wall Mount

Larger picture

Stainless Steel Wall Mount option for flush fitting and High Security. Quality 1.2mm stainless steel with verticle grain. The mounting plates are stud welded for switch mounting from the rear. Only avaiable in the Panel mount style switches.

Can be custom Laser engraved to suit swith positions.

Key Switch is not included with product.

LIW Order Code “PZ11R”
75mm X 115mm
Order with Panel Mounting Only

Flush Fit - Studless

Larger picture

Flush fit bezel surround designed to achive near flush finish on sheet metal. The lift mount thread is designed to screw into a centre thread with a lock nut, then the outside nut is used to secure the switch and bezel to the fixture.

Specify colour (Silver, Red or Black) and engraving/marking at order time.

LIW Order Code “DL Studless”
Diameter = 40mm Hole Size = 36mm
Order with Lift Mounting Only
