Standard Series Lock It Well Security Key Switch

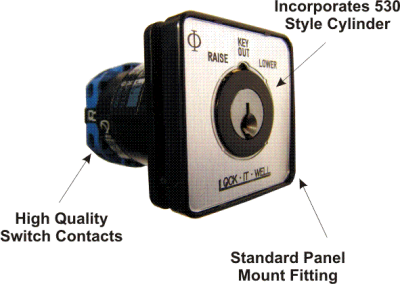

Standard Series Key Switches ( Includes EZY Series)

The Standard series of key operated switches has been designed for durability security, easy selection and easy installation. Designed for Panel mount only the Standard series uses a common 530 entrance set lock cylinder. The Ezy Series are a set of four common switches are available off the shelf and are designed for common circuit uses.

Features

Incorporates standard 530 Key Entrance Set Lock cylinders.
Supplied with four fixing points for a high strength mounting.
Cylinder easily removed and re-assembled without risk of the switch falling apart, using our patented design. (Using the multi-voltage switch only)
May be master keyed into all common lock brands and high security lock systems.
Lazy cam allows for key removal in both off and on positions.
Captive key also available in some configurations.

EZY "1 to 4" Series Locksmith Format

Supplyed with 530 style cylinder in KA or KD with two keys.
Supplied with 115 x70 Clipsal 2000 Series mounting plate.

Standard Series Downloads

Download K Series Brochure (Limited Circuits)

Download EZY Series Brochure (Locksmith Format)

Download Expanded Electrical Diagram

To View Only -> Click on Link

To Download -> Right Click and "Save As"

Optional Surface Box Mount - KEJB1

Larger picture

KEJB1 Surface mount box. To fit the Standard / Ezy Series Panel mount key switches.

LIW Order Code “KEJB1”
100mm X 100mm X 100mm
Order with Panel Mounting Only

Key Switch is not included with product.

Optional Water Resistant Mount - KEWP1

WaterProof IP Rated key switch

IP Rated Clipsal enclousre for Standard/EZY series Panel mount Key Switches (Please specify switch type, switch not included)

LIW Order Code “KEWP1”
100mm (H) X 100mm (W) X 100mm (H)
Order with Panel Mounting Only

Key Switch is not included with product.

Optional Stainless Steel Wall Mount

Larger picture

Stainless Steel Wall Mount option for flush fitting and High Security. Quality 1.2mm stainless steel with verticle grain. The mounting plates are stud welded for switch mounting from the rear. Only avaiable in the Panel mount style switches.

Can be custom Laser engraved to suit swith positions.

LIW Order Code “PZ13”
1.2mm Thickness x70mm (W) X 115mm (H)
Order with Panel Mounting Only

Key Switch is not included with product.

Optional Water Resistant Mount - PZ70

PZ70 IP66 RL Enclosure

IP66 Rated enclousre for Standard/EZY series Panel mount Key Switches (Please specify switch type, switch not included)Can be custom Laser engraved to suit swith positions.

LIW Order Code “PZ70”
190mm(H) X 100mm (W) X 100mm (L)
Order with Panel Mounting Only

Key Switch is not included with product.
